• Propulsion, front wheel drive
• Dual Level Charge Cord, dual-mode, portable, 120-volt (1.4 kW) and 240-volt (7.7 kW) capability swappable NEMA 5-15 and NEMA 14-50 plugs with SAE J1772 vehicle connection
• Electric drive unit, primary, 1 motor, integrated inverter, park system, 76F
• Battery Pack, Propulsion
• Fuel, none
• Emission system zero emission vehicle (ZEV)
• Electronic Precision Shift
• Propulsion, electric, FWD
• Vehicle-to-home (V2H) all V2H-capable GM EV's can provide power to your properly equipped home in a blackout to all equipment groups. (The GM Energy PowerShift Charger and GM Energy V2H Enablement Kit requires an adequately charged and properly equipped GM EV having bidirectional charging capabilities, a properly equipped home, and proper grid interconnection. Some eligible 24MY EVs will require a dealership or over-the-air update to enable bidirectional charging. Weather conditions, life of the battery, vehicle variation and usage, and other external factors may impact the duration of power supply. Power supply may be interrupted. It is not recommended that the following devices be powered with the GM Energy PowerShift Charger and V2H Enablement Kit: Medical Devices.)
• AC Charging, 11.5 kW capable
• Brakes, 17" front and rear sliding caliper disc with DURALIFE rotors with regenerative capability. 4 wheel disc and 4-wheel antilock braking.
• Brake lining, non-asbestos, organic
• Brake rotor, FNC
• Battery, 12V/60AH, 680 ENCCA
• Trailering provisions, wiring (does not include hitch receiver)
• Hitch Guidance
• Hitch View
• Suspension, Ride and Handling

• Wheels, 21" (53.3 cm) Black painted aluminum
• Tires, 275/40R21 all-season blackwall, self sealing
• Black roof (Not available with exterior color (GBA) Black and (PDR) Two-tone roof delete, RS.)
• Wheel, spare, none
• Tire, spare, none
• Roof rails, Black
• Lamp, front marker, LED
• Headlamps, center lit bar
• Headlamps, LED, with LED Daytime Running Lamps
• Tail lamps, LED
• IntelliBeam, automatic high beam on/off
• Glass, side front tempered, solar glazing
• Glass, privacy
• Glass, rear, deep tint
• Mirrors, outside heated power-adjustable, manual-folding
• Mirror caps, painted
• Wipers, front intermittent
• License plate front mounting package (will be forced on orders with ship-to states that require a front license plate)
• Door handles, body-color
• Liftgate, hands-free power programmable, AutoSense
• Recovery hook, front
• Recovery hook, rear

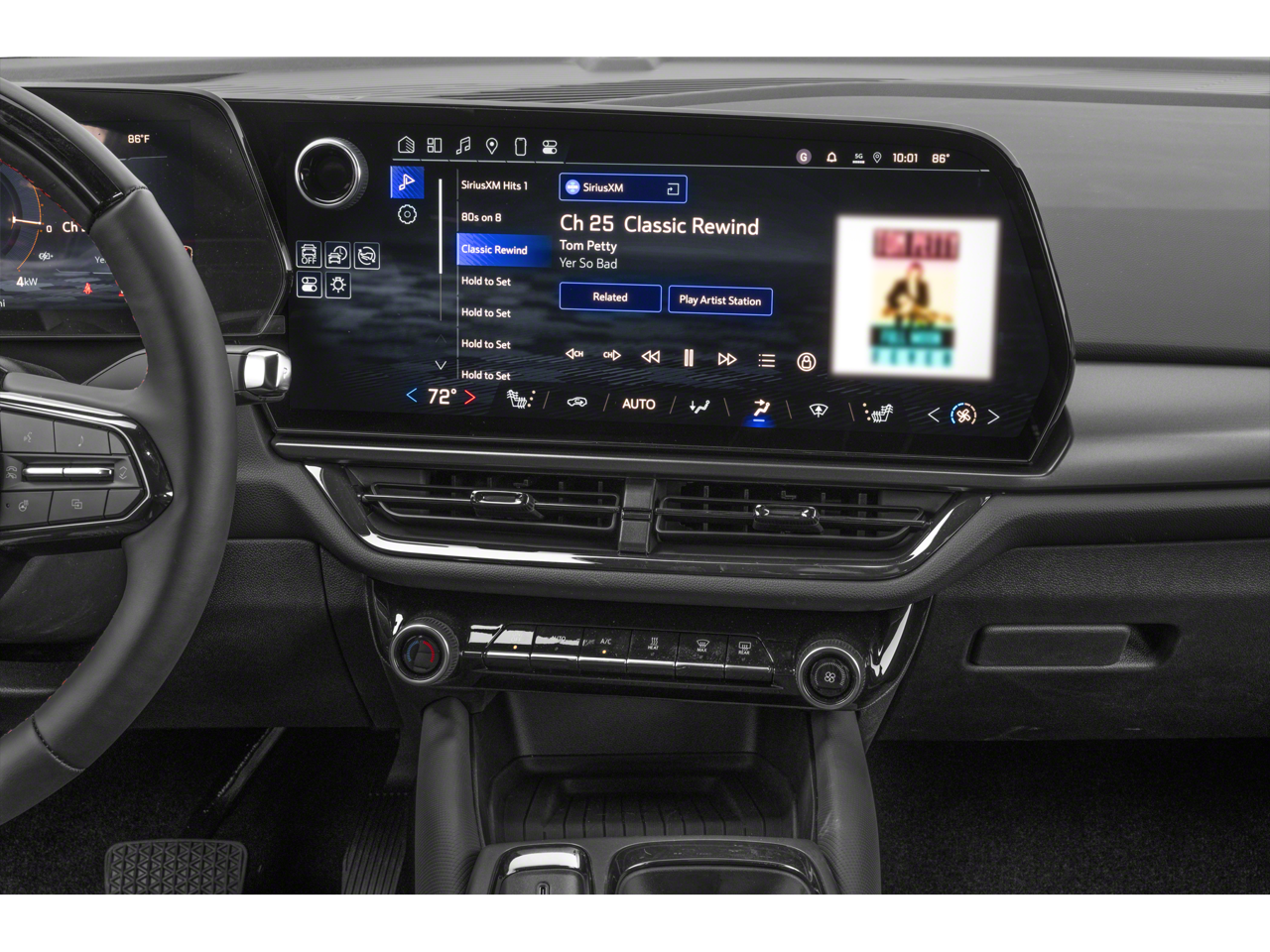

• Audio system, 17.7" diagonal advanced color LCD display with Google built-in compatibility (select service plan required, terms and limitations apply), including navigation capability, connected apps, personalized profiles for each driver's settings, and Natural Voice Recognition
• Audio system feature, 6-speaker system
• SiriusXM with 360L Trial Subscription. SiriusXM with 360L transforms your customers' ride with our most extensive and personalized radio experience on the road. (IMPORTANT: The SiriusXM trial subscription is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. Trial subscription is subject to the SiriusXM Customer Agreement and privacy policy, visit siriusxm.com which includes full terms and how to cancel. All fees, content, features, and availability are subject to change. Some features require GM connected vehicle services.)
• 5G Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

• Seats, front bucket
• Seat trim, Evotex
• Seat, driver power lumbar control
• Seats, heated driver and front passenger cushion and seatback
• Seat adjuster, driver 8-way power
• Seat adjuster, front passenger 4-way manual
• Seat, rear 60/40-split folding
• Headrest, rear center
• Console, floor, with armrest
• Armrest, rear center, with cup holders
• Floor mats, front, carpeted
• Floor mats, rear, carpeted
• Steering wheel, heated, automatic
• Steering wheel, wrapped, flat-bottom
• Steering column, tilt and telescopic
• Speedometer, miles/kilometers, miles odometer
• Display, automatic occupant sensing

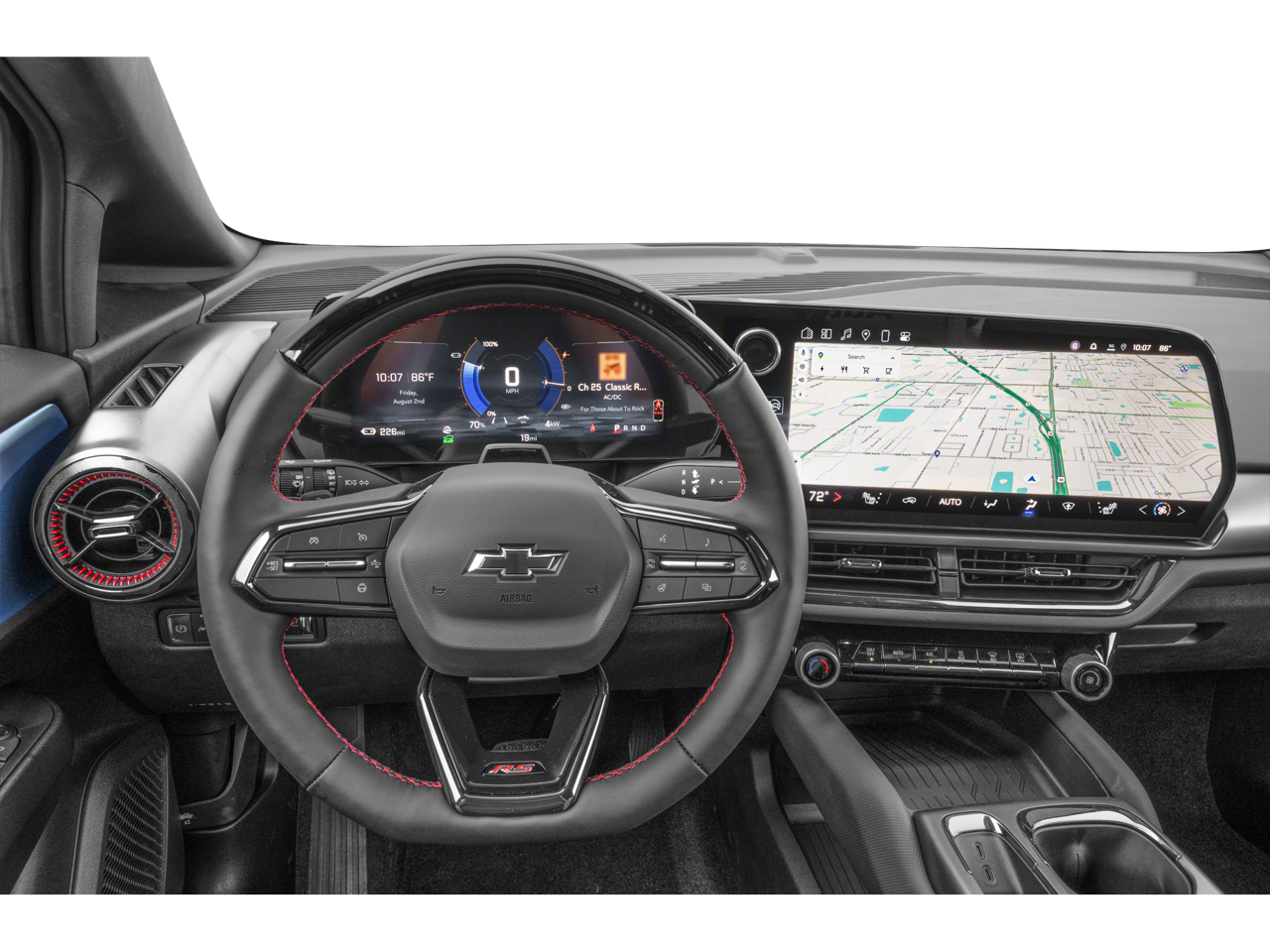

• Driver Information Center, 11" diagonal display
• Windows, power with driver Express-Up and all windows Express-Down
• Remote Start, smartphone app
• Adaptive Cruise Control
• Theft-deterrent system, unauthorized entry
• Power outlets, (2), 12-volt, lower instrument panel and cargo area, auxiliary
• Wireless Phone Charging
• USB ports, 2 type-C, Charge/Data ports located on floor console
• USB ports, 2 type-C, located on back of center console, charge-only
• Google Automotive Services capable
• Navigation System through Google built-in compatibility (select service plan required, terms and limitations apply)
• Infotainment, High
• Air conditioning, single-zone automatic climate control
• Air filter, pollutant
• Glovebox
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated sliding vanity mirrors, covered
• Lighting, interior, ambient, multi-color

• Enhanced Automatic Emergency Braking
• Rear Park Assist
• Intersection Automatic Emergency Braking
• Rear Cross Traffic Braking
• Reverse Automatic Braking
• Front Pedestrian and Bicyclist Braking
• Airbags, frontal, knee and seat-mounted side-impact for driver and front passenger and roof-rail mounted head-curtain for outboard seating positions. Includes Passenger Sensing System for front passenger (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbag, Passenger Sensing System, sensor indicator inflatable restraint front passenger/child presence detector (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar Services capable (See onstar.com for details and limitations. Services vary by model. Service plan required.)
• Forward Collision Alert
• Following Distance Indicator
• Lane Keep Assist with Lane Departure Warning, enhanced
• Rear Pedestrian Alert
• Blind Zone Steering Assist
• HD Surround Vision
• LED Reflective Windshield Collision Alert
• Safety Alert Seat
• Seat belt, front passenger presence detector
• Seat belt restraint pretensioner, rear
• Restraint provision-retractor, automatic locking
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. It includes the Buckle-to-Drive feature which prevents the driver from shifting from Park for up to 20 seconds if the driver's seat belt is not buckled. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Restraint provisions, child, Isofix 2 point only, point/latch includes 2 top tether points
• Rear Seat Reminder
• Rear Seat Belt Indicator
• Lock control system, passive entry, extended range
• Door locks, rear child security
• Side Bicyclist Alert
• Traffic Sign Recognition, enhanced, sensor indicator
• Horn, dual-note
• OnStar Basics (OnStar Fleet Basics for Fleet) Drive confidently with core OnStar services including remote commands, built-in voice assistance, real-time traffic and navigation, and Automatic Crash Response to help if you're in need. (Requires (UE1) OnStar. OnStar Basics includes remote commands, Navigation, Voice Assistance, and Automatic Crash Response, for eligible vehicles with compatible software. OnStar Basics is standard for 8 years; OnStar plan, working electrical system, cell reception and GPS signal required. OnStar links to emergency services. Service coverage varies with conditions and location. Service availability, features and functionality vary by device and software version. See onstar.com for details and limitations.)

• 12 Months OnStar One Fleet Includes up to 12 months of OnStar One Fleet. Everything you need to feel more confident, connected, and productive on the road. Includes safety, telematics, Wi-Fi hotspot, and streaming services. Working electrical system, cell reception and GPS signal required. OnStar links to emergency services. Service coverage varies with conditions and location. Service availability, features and functionality vary by device and software version. Requires eligible vehicle. Streaming services vary with conditions and location. Terms apply. See gmenvolve.com/software/onstar for additional details and limitations. Non-transferable and non-refundable. (Requires (UE1) OnStar and (VV4) Wi-Fi Hotspot capable. Requires one of the following Fleet or Government order types: FLS, FNR, FRC, FBC, FGO or FEF. Not available with RFH, R8P, R8Z, R8W, P0U, P0J, P0K, P0L, P0Q, P0V, P0W, P0X, P0Y, P0Z, P0H, P0I, PQG, PQH or PQI. Not available with a ship-to of Guam, Puerto Rico or the Virgin Islands.)

RS PREFERRED EQUIPMENT GROUP

• includes standard equipment

SEATS, FRONT BUCKET

• (STD)

SUNROOF, POWER, DUAL PANEL, PANORAMIC, SLIDING

• with power sunshade

ENGINE, NONE

• (STD)

TRANSMISSION, NONE (ELECTRIC DRIVE UNIT)

• (STD)

LPO, ALL-WEATHER LINER PACKAGE

• includes (CAV) All-weather cargo area liner
• LPO and (RIA) All-weather contoured floor liners
• LPO

WHEELS, 21" (53.3 CM) BLACK PAINTED ALUMINUM

• (STD)

• BLACK ROOF

  LPO

• ALL-WEATHER CARGO AREA LINER

  BLACK WITH RED ACCENTS

• EVOTEX SEAT TRIM

  EMISSIONS

• FEDERAL REQUIREMENTS

  STERLING GRAY METALLIC

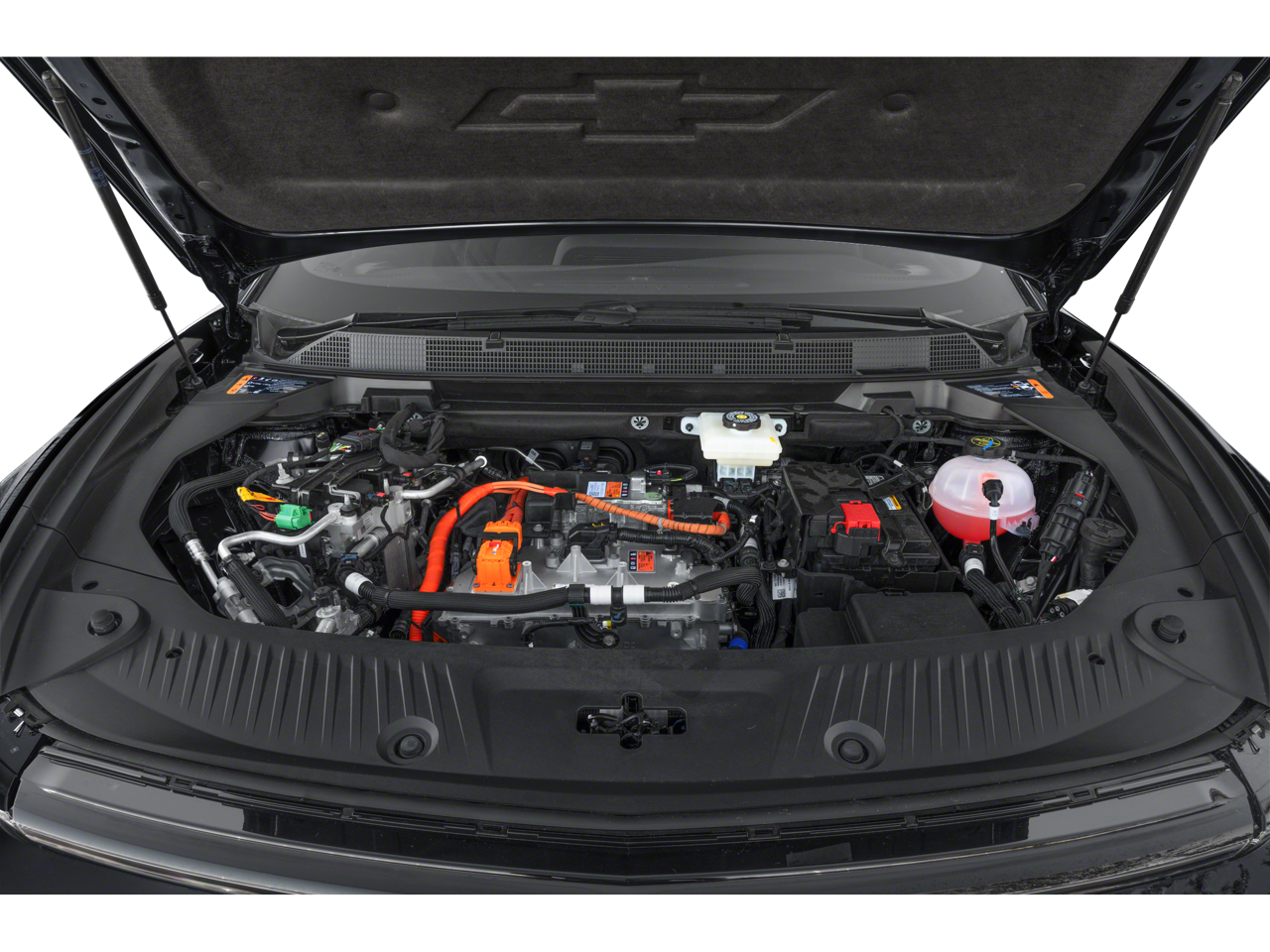

  ELECTRIC DRIVE UNIT

• PRIMARY
• 1 MOTOR
• INTEGRATED INVERTER
• PARK SYSTEM
• MAGNETS
• 76F

  LPO

• ALL-WEATHER FLOOR LINERS
• CONTOURED

  ELECTRIC DRIVE UNIT

• SECONDARY
• 1 MOTOR
• 78R

  PROPULSION

• ELECTRIC
• AWD
• FRONT

  PROPULSION

• DUAL MOTOR ALL-WHEEL DRIVE (AWD)

• Vehicle
• EPA Classification: Sport Utility Vehicles
• Mileage
• EPA MPG Equivalent - City: 112 (2025)
• EPA MPG Equivalent - City: 117 (2025)
• EPA MPG Equivalent - Hwy: 95 (2025)
• EPA MPG Equivalent - Hwy: 100 (2025)
• EPA MPG Equivalent - Combined: 103 (2025)
• EPA MPG Equivalent - Combined: 109 (2025)
• Estimated Battery Range (mi): 307 (2025)
• Estimated Battery Range (mi): 319 (2025)
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): - TBD -
• Suspension
• Suspension Type - Front: MacPherson strut
• Suspension Type - Rear: Multi-Link
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 17 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 17 x - TBD -
• Tires
• Front Tire Order Code: QLT
• Rear Tire Order Code: QLT
• Spare Tire Order Code: 9L3
• Front Tire Size: 275/40R21
• Rear Tire Size: 275/40R21
• Spare Tire Size: N/A
• Wheels
• Front Wheel Size (in): 21 x - TBD -
• Rear Wheel Size (in): 21 x - TBD -
• Spare Wheel Size (in): N/A
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: N/A
• Steering
• Steering Type: Rack EPS
• Steering Ratio (:1), Overall: 59
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 38.06
• Turning Diameter - Wall to Wall (ft): N/A
• Exterior Dimensions
• Wheelbase (in): 116.3
• Length, Overall (in): 190.55
• Width, Max w/o mirrors (in): 76.94
• Height, Overall (in): 64.8
• Track Width, Front (in): 63.45
• Track Width, Rear (in): 63.69
• Min Ground Clearance (in): 6.4
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 57.2
• Cargo Volume to Seat 2 (ft³): 26.4
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 102.24
• Front Head Room (in): 39.15
• Front Leg Room (in): 41.65
• Front Shoulder Room (in): 58.64
• Front Hip Room (in): 55.95
• Second Head Room (in): 38.49
• Second Leg Room (in): 38
• Second Shoulder Room (in): 55.45
• Second Hip Room (in): 50.7
• Summary
• Vehicle Name: Chevrolet Equinox EV
• Body Style: Sport Utility Vehicle
